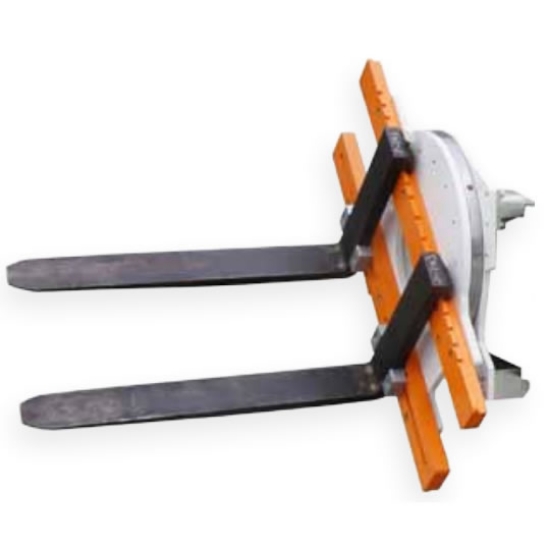

Hydraulic Forklift Rotator 4500kg 360 Degree Class 3

This 360 degree rotator is designed to increase the functionality of your forklift to hydraulically rotate loads while retaining the standard forklift use to handle palletised and conventional loads.
Part No: EW-XZQ45D
*
$11,950.00 excl GST

Hydraulic Forklift Rotator 4500kg 360 Degree Class 3


This 360 degree rotator is designed to increase the functionality of your forklift to hydraulically rotate loads while retaining the standard forklift use to handle palletised and conventional loads.

Features:
  • Used to turn load or pour load content
  • Continuous 360 degree rotation in both directions to allow use in any application
  • Concealed drive motor for added protection
  • Excellent operator visibility
  • One additional hydraulic circuit required
  • Optional Quick Hitch Rotator Adapator (QHRA) & Carriage Adaptor (QHCA) available for fitment to a telehandler
  • Commonly used for container turning or emptying operations in food, chemical, sanitation, recycling, smelting and casting industries
Specifications:
  • Mounting Class : Class 3
  • Load Capacity : 4500kg at 600mm Load Centre
  • Frame Width (mm) : 1200mm
  • Minimum Truck Carriage Width : 800mm
  • Weight (Kg) : 550kg
  • Lost Load (mm) : 178mm
  • Horizontal CofG : 145mm
