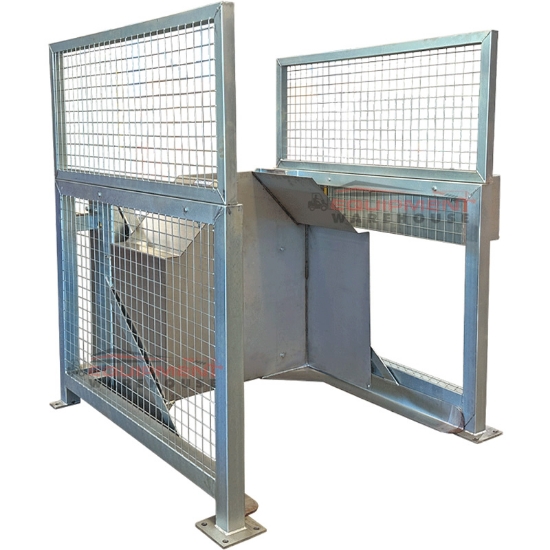

Floor Mounted Mega Bin Tipper 1000Kg WLL

This Floor Mounted Mega Bin Tipper with stainless steel chute is designed to allow the effortless tipping of nally bins.
Part No: EW-FMMBT1000
*
$10,650.00 excl GST

Floor Mounted Mega Bin Tipper 1000Kg WLL



This Floor Mounted Mega Bin Tipper with stainless steel chute is designed to allow the effortless tipping of nally bins.

Features:
  • Allows for 130 degree rotation of a nally bin
  • Operated by hydraulic lever
  • Stainless chute guides material flow
  • Supplied with removable side safety barriers
  • Suitable for forklift or hand pallet jack bin loading
  • Hydraulic power pack, 240-volt, 2.2kw
  • Bin retainer fitted standard to suit mega bins
  • Tipping height approx. 1100mm above floor
  • 42 second full tipping cycle
  • Suitable for use in food industry
  • Zinc frame / 304 Stainless steel chute
Specification:
  • Working Load Limit (WLL) : 1000kg
  • Rotation : 130 degree
  • Tipping Height : 1100mm above floor approx.
  • Tipping Cycle : 42 seconds
  • Overall Dimensions : 1745 x 1555 x 1400mm
  • Dimensions (at full rotation) : 1745 x 2155 x 2670mm
  • Unit Weight : 550kg approx.
